- Country
- Italy
- Manufacturer / Brand
- IMER Radio (I.M.E.R.); Luino (VA)
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 95698

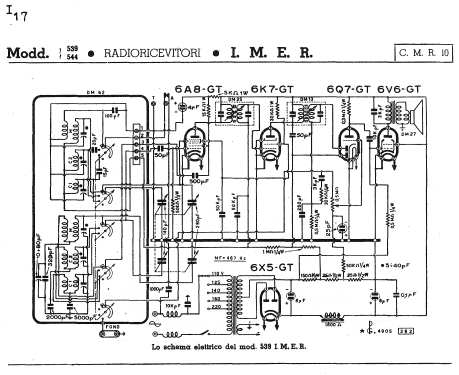

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (max.)
- from Radiomuseum.org
- Model: 539 - IMER Radio I.M.E.R.; Luino VA
- Dimensions (WHD)
- 302 x 232 x 180 mm / 11.9 x 9.1 x 7.1 inch
- Notes
-
Tre gamme d'onda.
3 wave bands.Onde Corte 1 da 13 a 27 metri. Onde Corte 2 da 27 a 55 metri. Onde Medie da 180 a 580 metri.
- Mentioned in
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 96)
- Literature/Schematics (1)

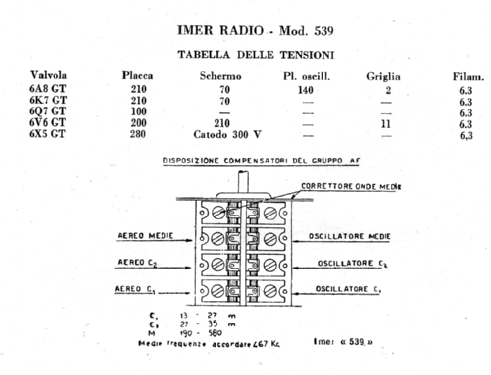

- Riparazioni - Scuola Radio Elettra (pag. I17)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
