- Country
- United States of America (USA)
- Manufacturer / Brand
- Imperial Radio Company; Chicago, IL
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223349
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

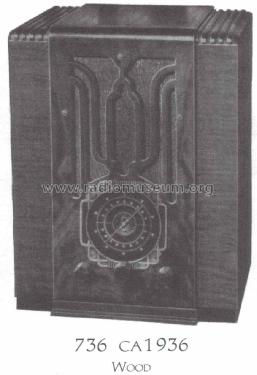

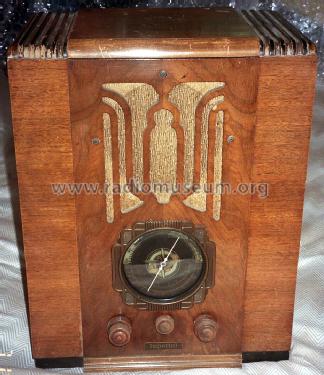

- Model: 736 - Imperial Radio Company;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 13.5 x 17.5 x 9 inch / 343 x 445 x 229 mm
- Notes
-
Push-pull output.
- Source of data
- Cathedral & Tombstone Radios
- Mentioned in
- Machine Age to Jet Age II (page 159.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
