- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1958/1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 226306
Vom Hersteller
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- PCC88 PCF80 EF80 EF80 PM84 EF80 EF80 EF80 EF80 PABC80 PL82 EAA91 PCL84 ECC82 ECC81 PCF80 PL82 PL36 PY83 DY86 AW53-80
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 921 S-Automatik - Imperial Rundfunk und Fernseh
- Shape
- Tablemodel, with any shape - general.
- Notes
-

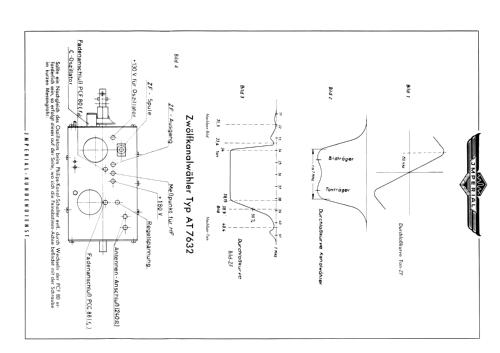

Nur VHF mit Philips Tuner Typ AT 7632
- Source of data
- -- Schematic
- Literature/Schematics (1)
- -- Original-techn. papers.
