• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112560

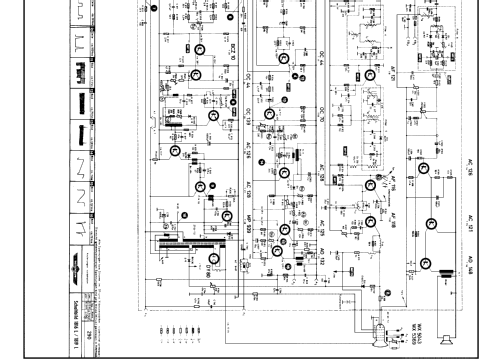

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• DY80 WX5043

• Number of Transistors
• 34

• Semiconductors
• AF106 AF102 AF102 AF139 AF139 OC303 AF121 OC303 AF121 AF121 AF116 AF118 AF118 BSY74 OC44 OC70 AC128 AC125 AD132 AC125 AD133 AC152 SFT308 BCZ10 OC44 OC139 AC126 AC128 MP939 AF121 AF116 AC126 AC121 AD148 AA112 B30C200 B217_Diode BYY36 E50C5 E160C3 OA9 OA70 OA91 OA150 OA161 SZ15

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org
• Model: Astronaut 1819L - Imperial Rundfunk und Fernseh

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 460 x 420 x 310 mm / 18.1 x 16.5 x 12.2 inch

• Notes

• VHF Tuner Typ TK 2
  UHF Tuner Typ DT 121a

  19"/48-cm-Portable. Externe 12-V-Stromversorgung möglich.
  Baugleich mit Kuba Astronaut 1819L.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Source of data
• Handbuch VDRG 1966/1967

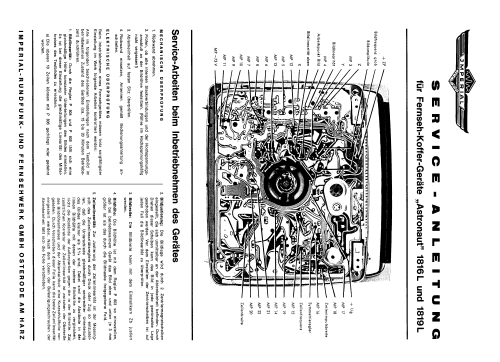

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.

• Other Models

• Here you find 449 models, 417 with images and 215 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
