• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1960/1961

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 116182

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EC92 ECL82 ECL82 PCC88 PCF80 PC86 PC86 EF85 EF80 EF80 PCL84 EF80 PCL82 ECH81 EBC91 PCL82 PCF80 PY88 PL36 DY86 AW53-88

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

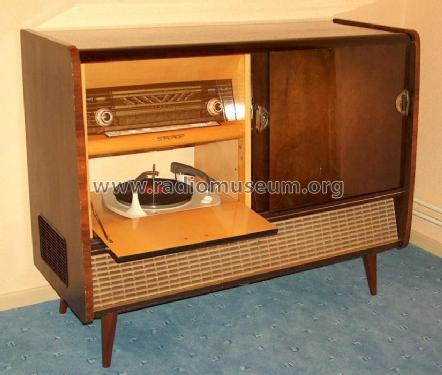

• Model: Imperia-Luxus 1221S Ch= J 609a TV-Ch= 1221 - Imperial Rundfunk und Fernseh

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1200 x 970 x 470 mm / 47.2 x 38.2 x 18.5 inch

• Notes

• Die ersten 8 Röhren gehören zum Radiochassis J 609a, die folgenden 16 (+2 für UHF-Teil) Röhren zum TV-Chassis 1221 Super-Automatic. Technische Daten und Ausstattung wie Imperia-Luxus 1223S, jedoch 53-cm-Bildröhre.

• Net weight (2.2 lb = 1 kg)
• 92 kg / 202 lb 10.3 oz (202.643 lb)

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
