- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154219

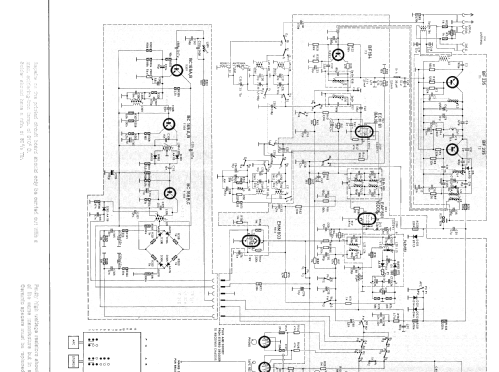

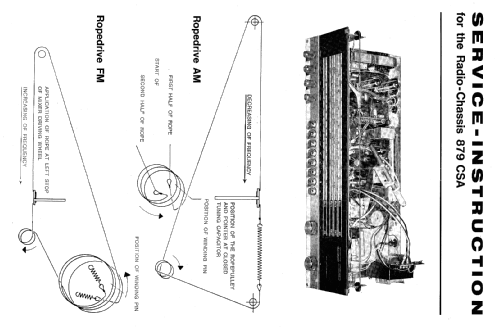

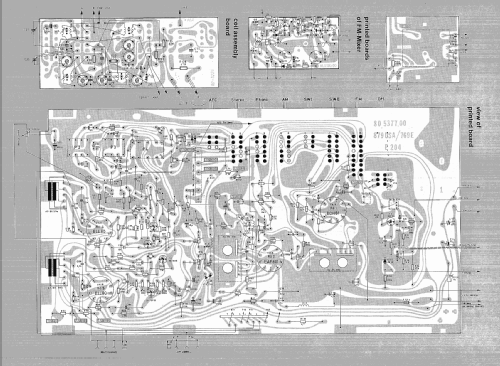

Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org
- Model: Radiochassis 879 CSA - Imperial Rundfunk und Fernseh
- Shape
- Chassis only or for «building in»
- Notes
- Exportmodel for USA, Mediumwave, 2 x Shortwave, FM Stereo, FM AFC.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Holger Ortmann. See "Data change" for further contributors.
