• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154216

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EAF801 ELL80 EMM803

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s); Export model

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

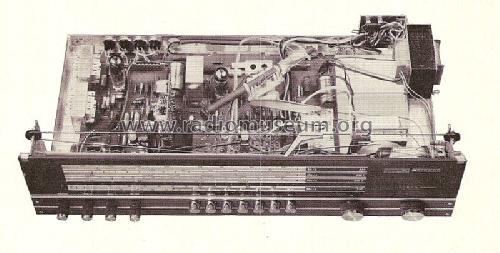

• Model: Radio Chassis J679/USA Stereo - Imperial Rundfunk und Fernseh

• Shape
• Chassis only or for «building in»

• Notes
• Exportversion, Mediumwave, 2xShortwave, FM Stereo, FM AFC.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Holger Ortmann. See "Data change" for further contributors.
