- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1964/1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 116236

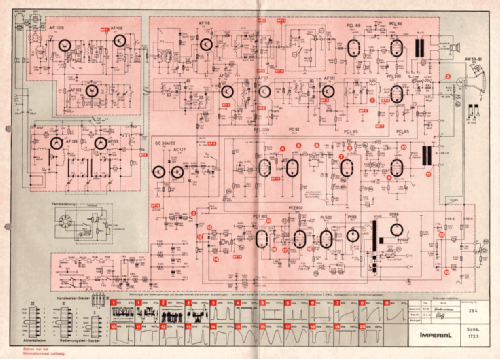

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 11
- Semiconductors
- AF109 AF106 AF102 AF139 AF139 OC304 AC127 AF115 AF127 AF121 AF121 AA111 BY242 OA150 RL43g V40C1
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rhodos Ch= 1723 - Imperial Rundfunk und Fernseh
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 750 x 850 x 340 mm / 29.5 x 33.5 x 13.4 inch
- Notes
- VHF/UHF.
- Price in first year of sale
- 1,408.00 DM
- Source of data
- Handbuch VDRG 1964/1965
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
