• Year
  • 1963/1964
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 108384

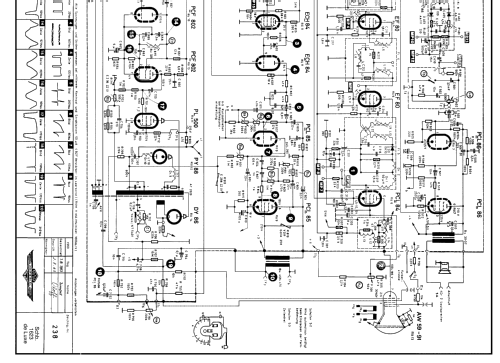

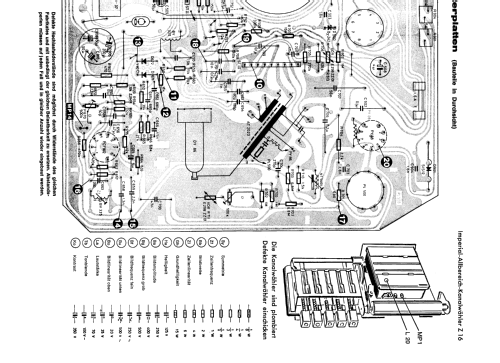

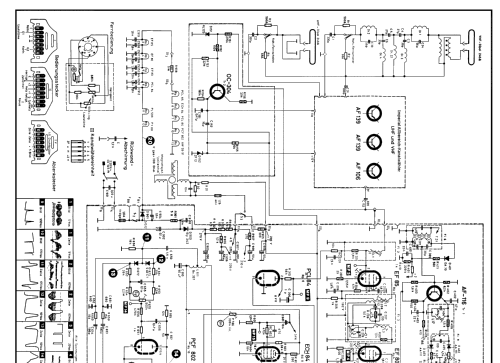

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Alassio Ch= 1623 de Luxe - Imperial Rundfunk und Fernseh
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 600 x 490 x 320 mm / 23.6 x 19.3 x 12.6 inch
  • Notes
  • VHF/UHF Imperial Allbereich Kanalwähler Typ Z16 mit 5 fach Schiebetaste.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
