• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1960/1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 102926

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC88 PCF80 PC86 PC86 EF85 EF80 EF80 PCL84 EF80 PCL82 ECH81 PCL82 EBC91 PCF80 PL36 PY88 DY86 AW59-90

• Number of Transistors

• Semiconductors
• OA160 OY241 RL232

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Catalina Ch= 1223 Super-Automatic - Imperial Rundfunk und Fernseh

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 600 x 980 x 410 mm / 23.6 x 38.6 x 16.1 inch

• Notes

• TV Chassis Ch= 1223 Super-Automatic.

  VHF Tuner Valvo AT 7635/80

  UHF Tuner Schwaiger (brand).

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

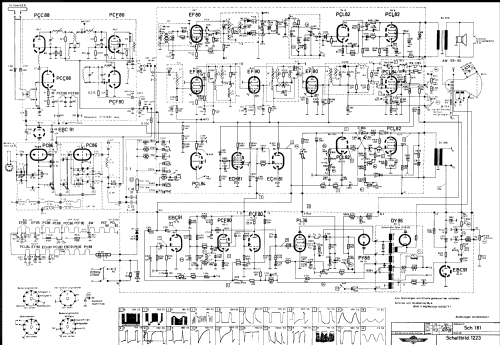

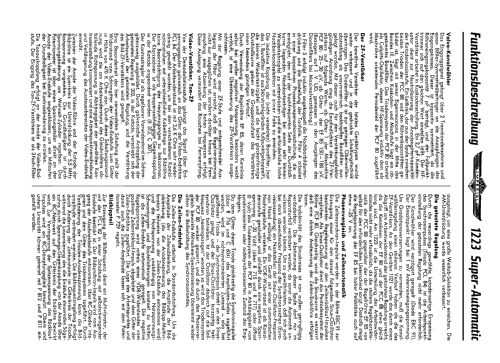

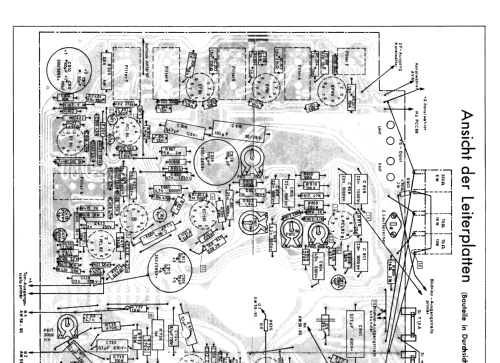

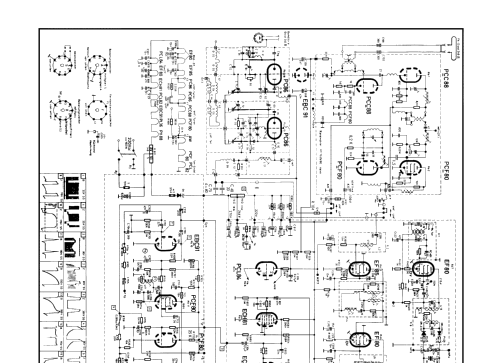

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
