- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 105390
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- AW59-90
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

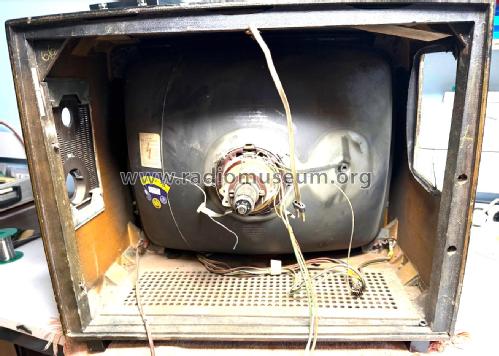

- Model: FET1423 - Imperial Rundfunk und Fernseh
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 510 x 380 mm / 23.2 x 20.1 x 15 inch
- Notes
- VHF/UHF.
- Net weight (2.2 lb = 1 kg)
- 27 kg / 59 lb 7.5 oz (59.471 lb)
- Price in first year of sale
- 998.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
