• Year
  • 1964/1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 25800

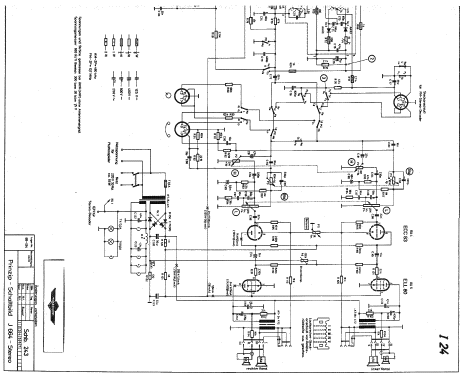

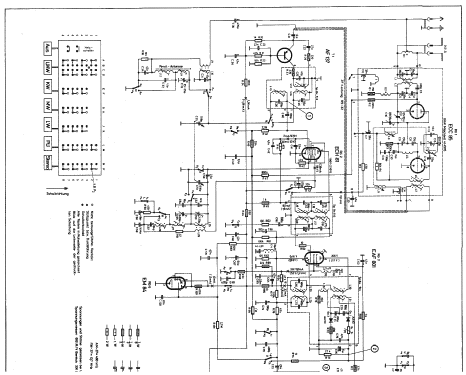

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • 1
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 6 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Florida Ch= J 664 [mattiert] - Imperial Rundfunk und Fernseh
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1030 x 780 x 370 mm / 40.6 x 30.7 x 14.6 inch
  • Notes
  • Rundfunk-Chassis = J 664-Stereo, Stereo-Decoder nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 3 W;
    Stereo-Plattenwechsler verschiedener Fabrikate.

  • Price in first year of sale
  • 948.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
