- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1970–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28408
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 40
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 235; 250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

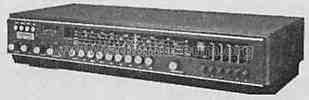

- Model: HiFi 2600 [natur] - Imperial Rundfunk und Fernseh
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 540 x 107 x 256 mm / 21.3 x 4.2 x 10.1 inch
- Notes
- Stereo-Steuergerät. Vollstereo, NF-Verstärker mit zwei Endstufen je 24 W (Sinus).
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Price in first year of sale
- 878.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
