• Year
  • 1971–1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28411

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 37
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     14 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 117; 130; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

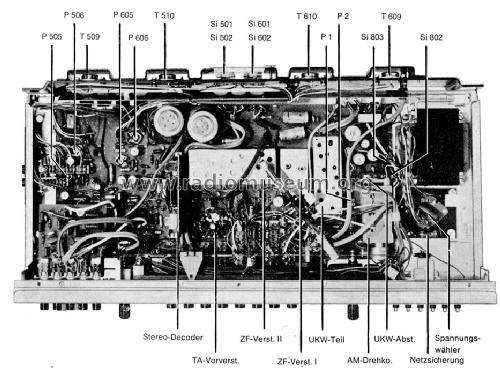

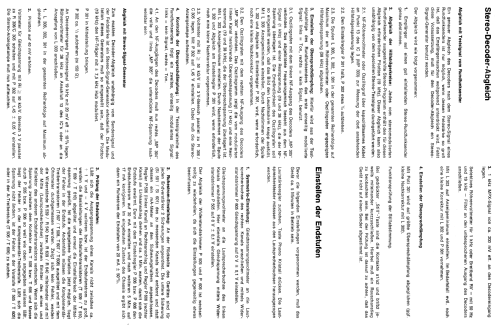

  • Model: Hi-Fi 2800 Ch= 5703 [weiss] - Imperial Rundfunk und Fernseh
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 550 x 110 x 265 mm / 21.7 x 4.3 x 10.4 inch
  • Notes
  • Hi-Fi-Stereo-Steuergerät. Vollstereo, NF-Verstärker mit zwei Endstufen je 40 W (Sinus).
    Transistoren sind mehrfach vorhanden
  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Price in first year of sale
  • 1,178.00 DM
  • External source of data
  • Erb
