- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1973–1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29094

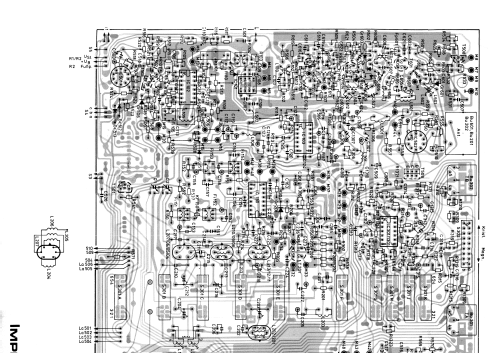

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 31

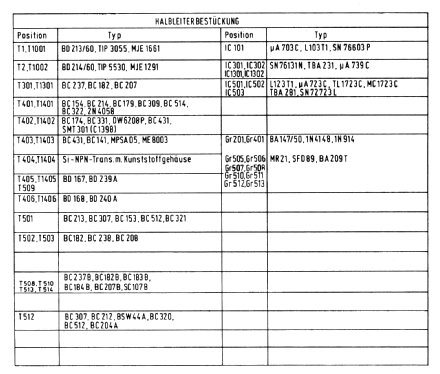

- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 15 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

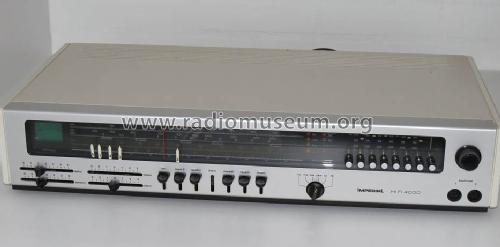

- Model: HiFi 4000 - Imperial Rundfunk und Fernseh
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 618 x 118 x 300 mm / 24.3 x 4.6 x 11.8 inch
- Notes
- Hi-Fi-Stereo-Steuergerät. Vollstereo, NF-Verstärker mit zwei Endstufen je 35 W.
- Net weight (2.2 lb = 1 kg)
- 7.9 kg / 17 lb 6.4 oz (17.401 lb)
- External source of data
- Erb
- Source of data
- Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Handbuch VDRG 1974/1975 (und 1975/76)
