• Year
  • 1973–1975
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29239

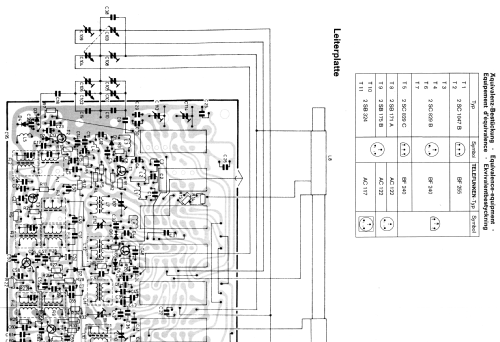

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 14 cm = 5.5 inch
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RP50 - Imperial Rundfunk und Fernseh
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 270 x 153 x 76 mm / 10.6 x 6 x 3 inch
  • Notes
  • Festsendertaste für Radio Luxemburg.
  • External source of data
  • Erb
