• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179018

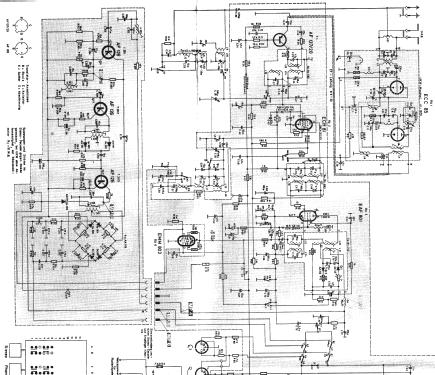

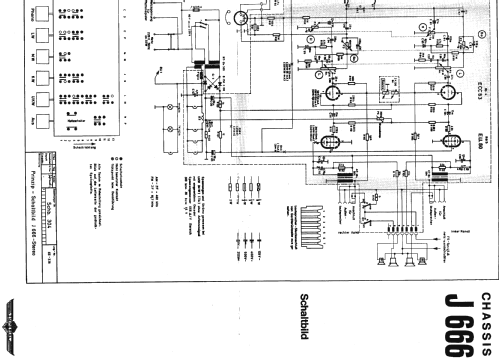

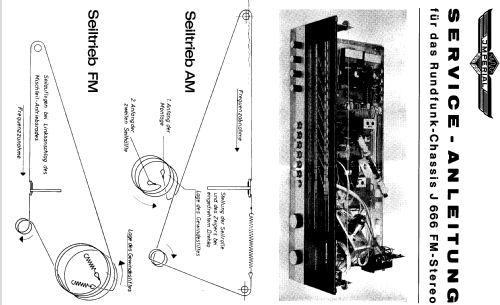

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

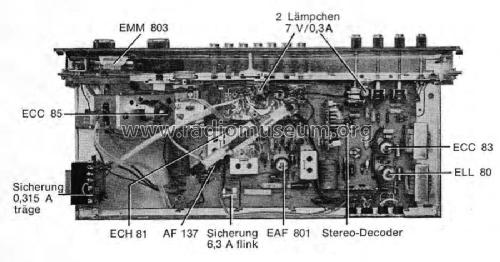

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EMM803 ELL80

• Number of Transistors
• 1

• Semiconductors
• AF137 AA113 AA113 B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

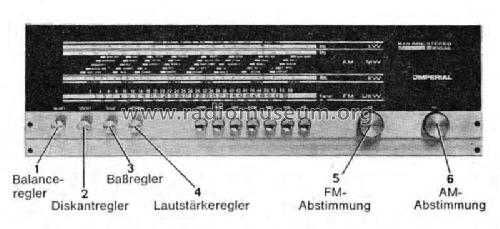

• Model: Rundfunk-Chassis J666 FM-Stereo - Imperial Rundfunk und Fernseh

• Shape
• Chassis only or for «building in»

• Notes
• Imperial Rundfunk-Chassis J 666 FM-Stereo;
  Stereo-Decoder nachrüstbar.
  Stereo-NF-Verstärker mit 2 Endstufen je 3 W.

• Source of data
• - - Manufacturers Literature

Bedienungsanleitung Imperial J666 FM-Stereo

2122 KB
