Stereo-Super 664 Ch= J664

• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26489

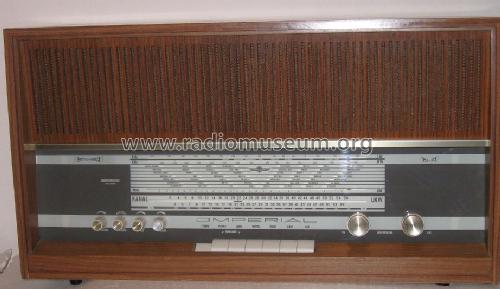

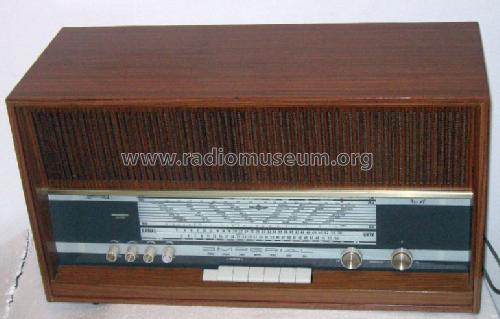

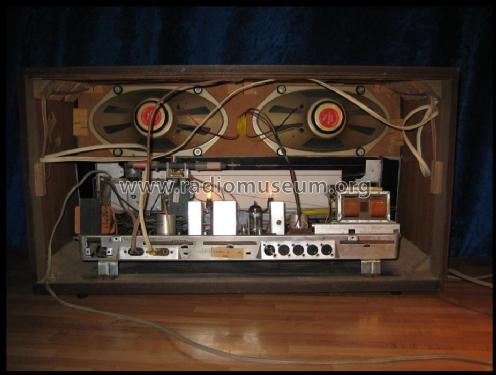

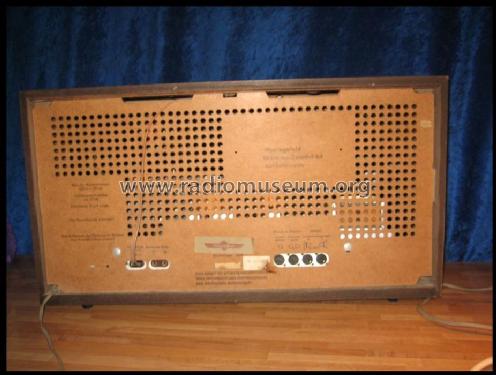

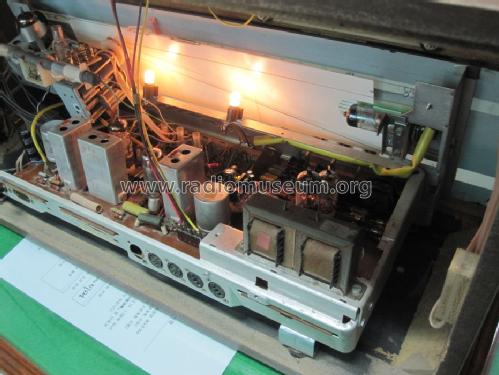

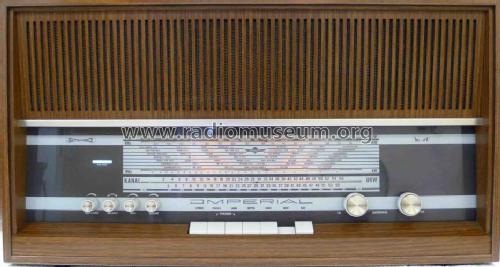

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM84 ELL80

• Number of Transistors
• 1

• Semiconductors
• AF137 AA113 AA113

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Super 664 Ch= J664 - Imperial Rundfunk und Fernseh

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 625 x 340 x 255 mm / 24.6 x 13.4 x 10 inch

• Notes
• Stereo-Decoder nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
  Baugleich mit Kuba Stereo-Super 664.

• Net weight (2.2 lb = 1 kg)
• 14.3 kg / 31 lb 8 oz (31.498 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967 / Radiokatalog Band 2, Ernst Erb
