• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 278005

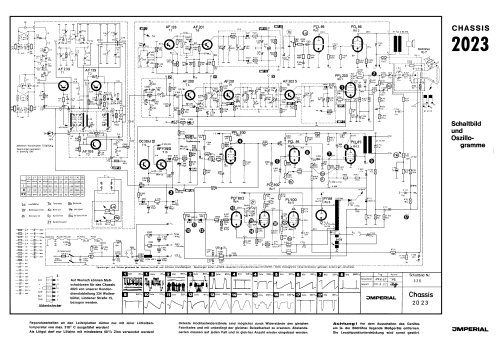

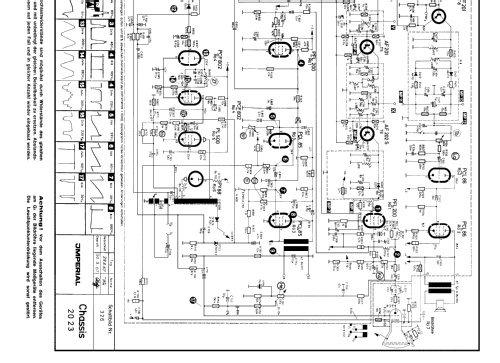

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PFL200 PCL85 PCF802 PL500 PY88 PCL86 unknown_CRT

• Number of Transistors
• 10

• Semiconductors
• AF239 AF139 AF106 AF200 AF201 AF202 OC304 BFY39 AF126 AF201 AA113 BY104 E500C2 M40C4 OA90 OA150 OA174 TV18 ZG33

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Printed Circuit Board

• from Radiomuseum.org
• Model: S/W Fernsehempfänger Chassis 2023 - Imperial Rundfunk und Fernseh

• Shape
• Chassis only or for «building in»

• Notes

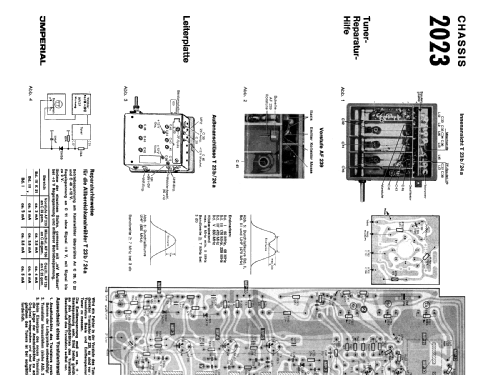

• VHF/UHF Imperial Allbereich Kanalwähler T24a oder T27a oder T23b.

  T23b Allbereich-Kanalwähler mit Schwungradantrieb.

  T24a/T27a mit Drucktasten ausgerüstet typ TE30dbzw. TE30a

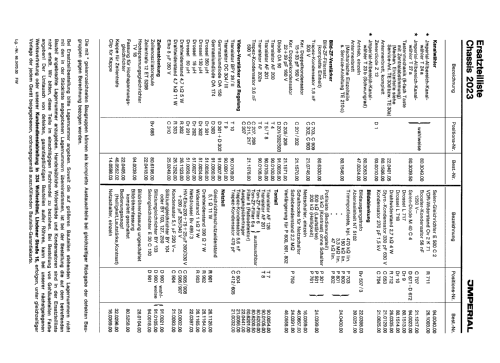

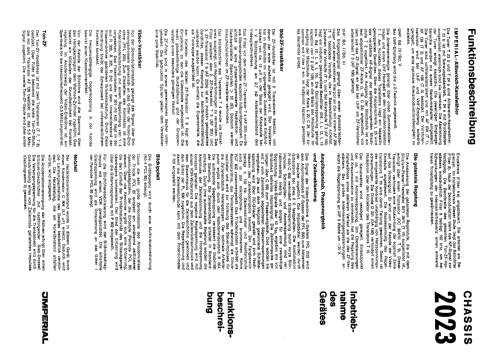

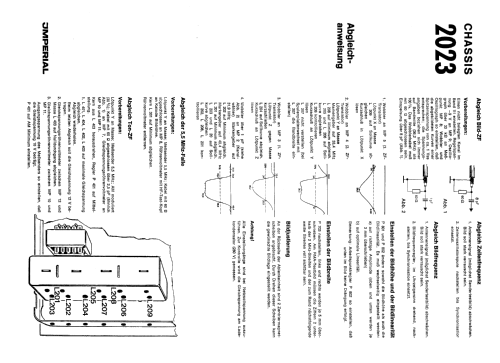

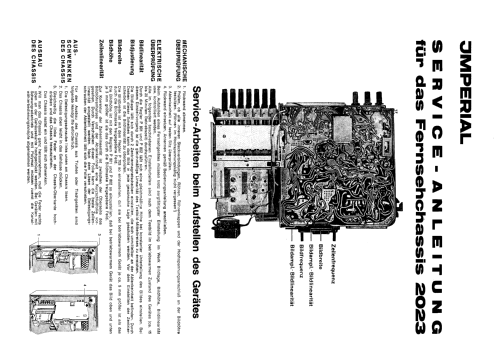

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
