• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1965/1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 110884

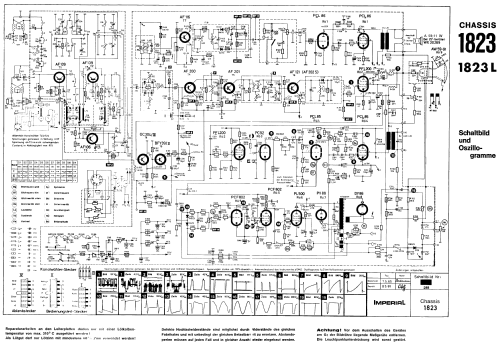

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• A59-11W

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Toronto E Ch= 1823 - Imperial Rundfunk und Fernseh

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 690 x 535 x 270 mm / 27.2 x 21.1 x 10.6 inch

• Notes
• VHF/UHF.
  Baugleich mit Kuba Toronto E.

• Net weight (2.2 lb = 1 kg)
• 29 kg / 63 lb 14 oz (63.877 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
