Vollstereo-Super 609T

• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22815

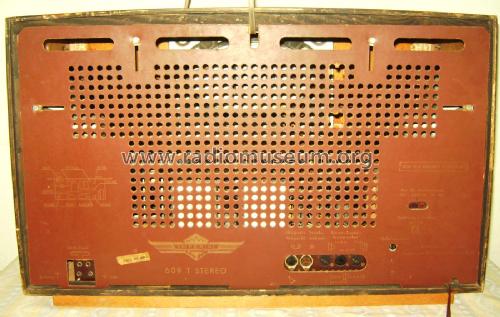

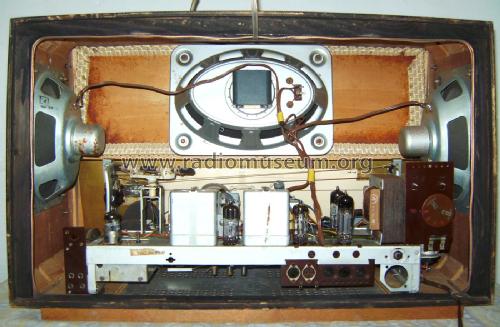

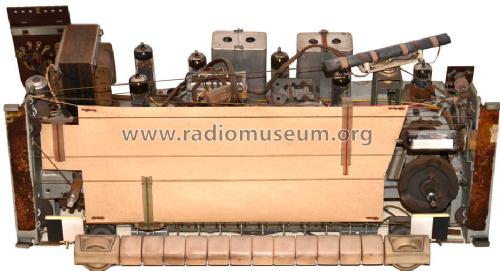

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EC92 ECL82 ECL82

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 235 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Vollstereo-Super 609T - Imperial Rundfunk und Fernseh

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 370 x 270 mm / 24.4 x 14.6 x 10.6 inch

• Notes

• Dreh- und abschaltbare Ferritantenne; Stereo-NF-Verstärker mit 2 Endstufen je 5 W.

  Preis auf Anfrage!

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Taxliste Franzis Verlag
