• Country
• United States of America (USA)

• Manufacturer / Brand
• Imperial Radio Company; Chicago, IL

• Year
• 1926 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201642

• Number of Tubes
• 5

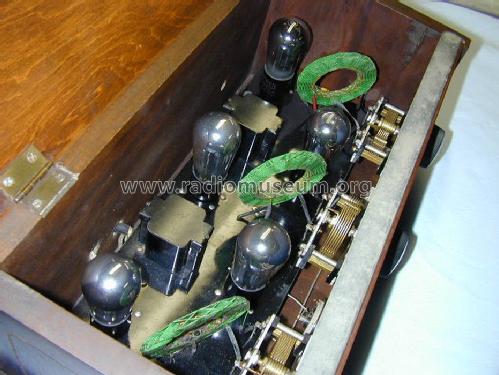

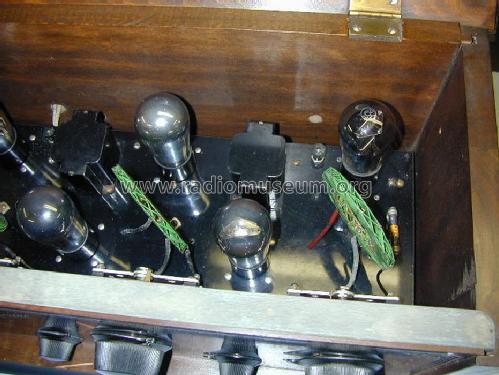

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A

• Main principle
• TRF without regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

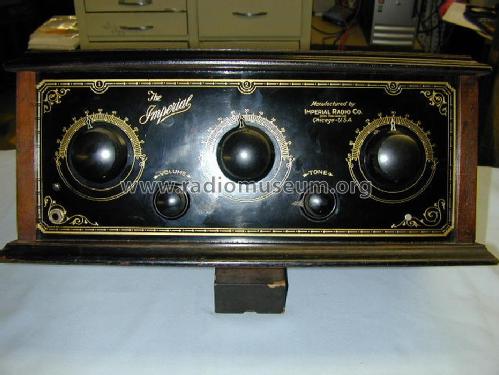

• Model: The Imperial - Imperial Radio Company;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 20 x 9 x 11 inch / 508 x 229 x 279 mm

• Notes

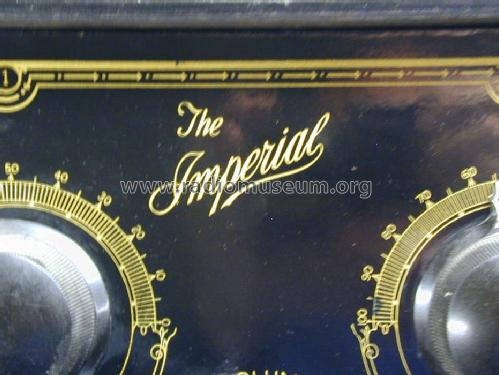

• The Imperial Radio Company "The Imperial". Maybe the starting model, proudly bearing its name.

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.

• Other Models

• Here you find 29 models, 22 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Imperial Radio Company; Chicago, IL
