- Country
- Italy
- Manufacturer / Brand
- Incis, Fratelli Seregni; Saronno
- Year
- 1962 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 114254

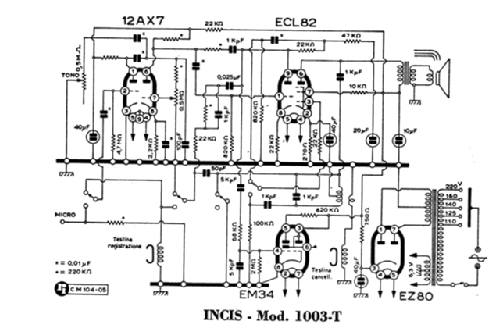

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 1003/1 - Incis, Fratelli Seregni;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 340 x 285 x 180 mm / 13.4 x 11.2 x 7.1 inch
- Notes
- Single speed, 5" reels.
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Author
- Model page created by Emilio Ciardiello. See "Data change" for further contributors.
