• Country
• Italy

• Manufacturer / Brand
• Indesit; Ancona

• Year
• 1970 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 300229

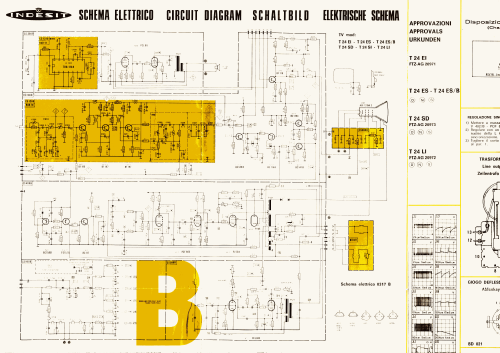

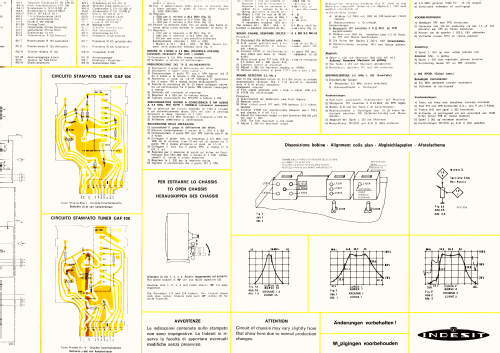

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• PCL86 PCL805 PCF802 PL504 PY88 A61-120W/2

• Number of Transistors
• Semiconductors present.

• Semiconductors
• BF196 BF197 BF178 TBA120 BC148 BC174 BC147 BC158 BSY79 BC157 BC117 TV18 OA90 BA129 1N4148 ZTK33

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org

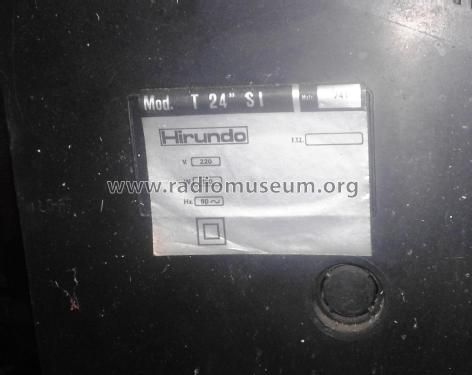

• Model: Hirundo T 24" SI Ch= Indesit 490-26E - Indesit; Ancona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 680 x 500 x 500 mm / 26.8 x 19.7 x 19.7 inch

• Notes

• Speaker ellittico 120 X 180 mm

  Solid state devices listed once per type, excluding RF front end (tuner).

• Net weight (2.2 lb = 1 kg)
• 19.4 kg / 42 lb 11.7 oz (42.731 lb)

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
