T24EI
Indesit; Ancona
- Country
- Italy
- Manufacturer / Brand
- Indesit; Ancona
- Year
- 1973 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 308659

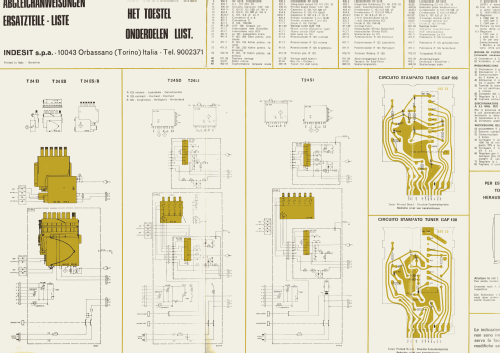

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors present.
- Semiconductors
- BF196 BF197 BF178 TBA120 BC148 BC174 BC147 BC158 BSY79 BC157 BC117 TV18 OA90 BA129 1N4148 ZTK33
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 50Hz, 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T24EI - Indesit; Ancona
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Solid state devices listed once per type, excluding RF front end (tuner).
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
