• Country
• Soviet Union

• Manufacturer / Brand
• Industrial Union Start ("50 years October" Works), Novgorod

• Year
• 1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 253297

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• КТ315Б КТ3102 КТ315Б КТ315Б КТ315Б КТ315Б КТ361 КТ315Б КТ315Б КТ361 КТ680 КТ681

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.06 W (0.12 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

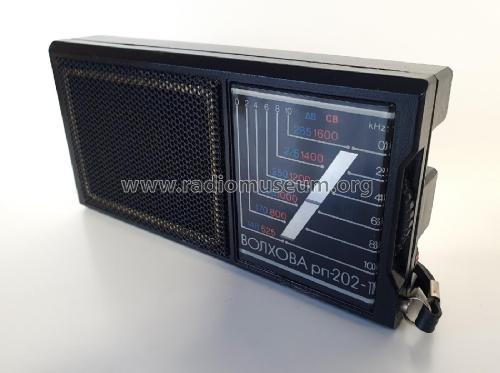

• Model: Volhova - Волхова RP-202-1 - РП-202-1 - Industrial Union Start "50

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 80 x 150 x 34 mm / 3.1 x 5.9 x 1.3 inch

• Net weight (2.2 lb = 1 kg)
• 0.270 kg / 0 lb 9.5 oz (0.595 lb)

• Author
• Model page created by Heiko Harry Hacker. See "Data change" for further contributors.
