• Country
• Spain

• Manufacturer / Brand
• Bettor, Industrias; Barcelona

• Year
• 1969 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 224884

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC108 BC108 BC108 BC108 BSX52 BSX52 PTO PTO AC141 AC141 AC142 AC142

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 10 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

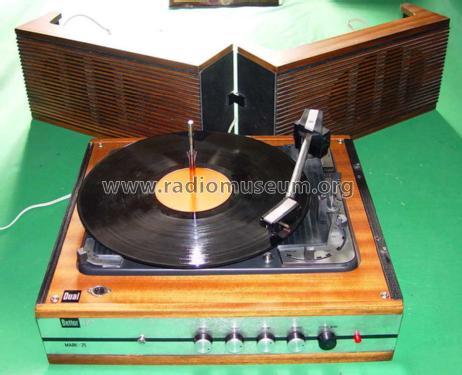

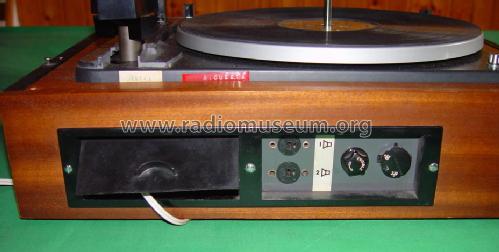

• Model: Mark 211 [plato Dual 1010] - Bettor, Industrias; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 205 x 380 mm / 16.5 x 8.1 x 15 inch

• Notes

• Industrias Bettor, S.A., Maleta tocadiscos estereofónica Mark-211

  • Plato automático Dual 1010
  • Amplificador 2 x 5 W
  • 2 altavoces elípticos de 6" x 10" @ 8 Ω

  Véase también:

  • Bettor Mark 211 [plato Dual 1211]

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• Catálogo Dual-Bettor 1969-70

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
