• Country
• Germany

• Manufacturer / Brand
• Industriefunk + Electronic; Usingen

• Year
• 1970

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 208159

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

• Material
• Metal case

• from Radiomuseum.org

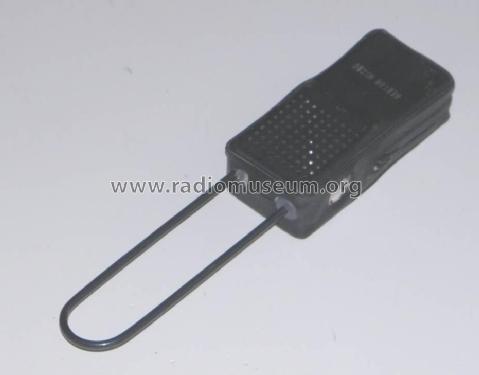

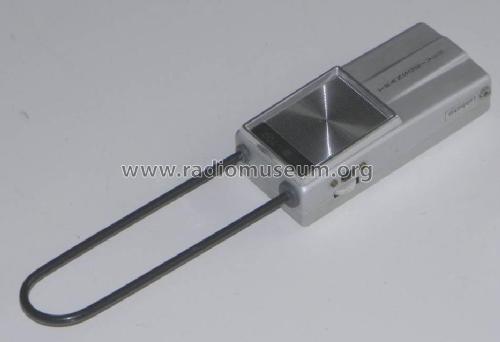

• Model: Sprechfunkgerät HFG-709 - Industriefunk + Electronic;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 60 x 130 x 34 mm / 2.4 x 5.1 x 1.3 inch

• Notes
• Handfunkgerät für den 27 MHz-CB-Bereich.
  Ein Kanal, Amplitudenmodulation.
  FTZ-Nr.: K 102/70.

• Net weight (2.2 lb = 1 kg)
• 0.230 kg / 0 lb 8.1 oz (0.507 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Industriefunk + Electronic; Usingen
