• Country
• Spain

• Manufacturer / Brand
• Ingra; Barcelona

• Year
• 1966 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 230663

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF116 AF116 AC126 AC126 AC127 AC132 AC180 AC180

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org

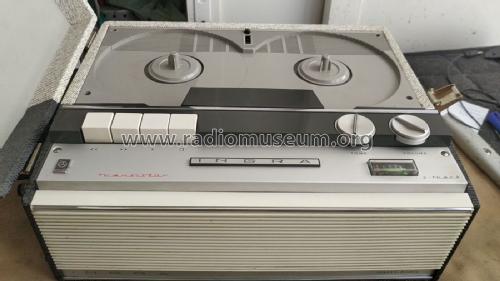

• Model: Magnetófono AM-66 - Ingra; Barcelona

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 140 x 280 mm / 13.4 x 5.5 x 11 inch

• Notes

• Ingra, Industria de Grabación y Reproducción Acústica, AM-66

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
