Magnetófono M7608
Ingra; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Ingra; Barcelona
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 122951
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 120/130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 4 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

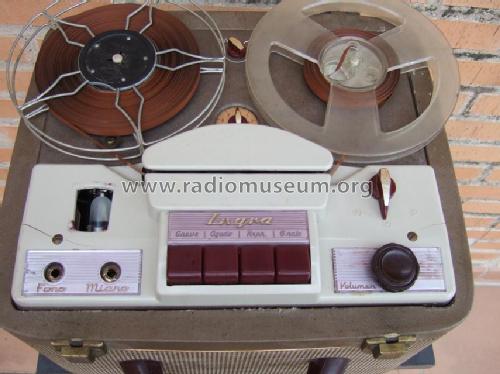

- Model: Magnetófono M7608 - Ingra; Barcelona
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 340 x 240 x 300 mm / 13.4 x 9.4 x 11.8 inch
- Notes
-
Ingra, Industria de Grabación y Reproducción Acústica, Magnetófono M7608
Este magnetófono tiene cuentavueltas mecánico y dos velocidades de grabacion/reproducion, 7-½ y 3-¾.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
