MC-402-L
Ingra; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Ingra; Barcelona
- Year
- 1975 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 199735

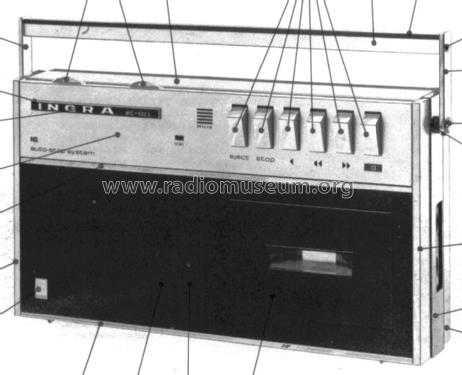

Foto del manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 115-240 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: MC-402-L - Ingra; Barcelona
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 290 x 170 x 75 mm / 11.4 x 6.7 x 3 inch
- Notes
- Listado un único semiconductor por tipo
(15 transistores, 2 IC, 9 diodos, rectificador B30-C350)
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
