RC-300-L 2 x IC
Ingra; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Ingra; Barcelona
- Year
- 1977 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200232

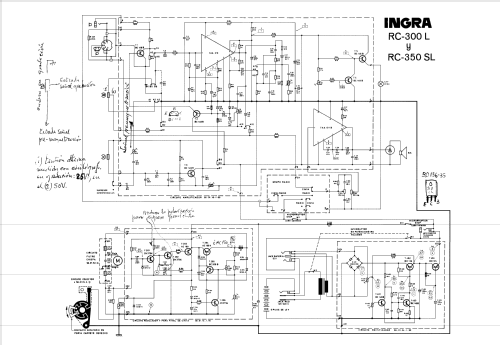

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 18
- Semiconductors
- AC180 BC148 BC208 BD135 BD136 SF294 SF295 2N3794 TAA310 TAA611 SFD107 SFD112 SD60 SZ6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 125-220 / 12 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RC-300-L [2 x IC] - Ingra; Barcelona
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Listado un único semiconductor por tipo.

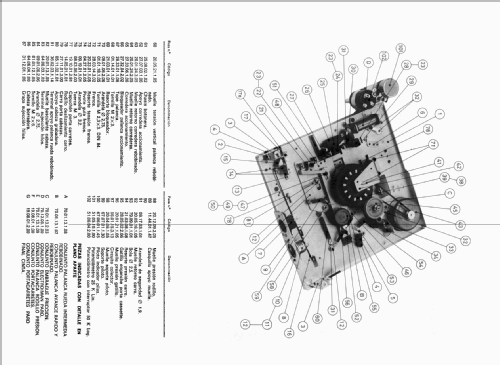

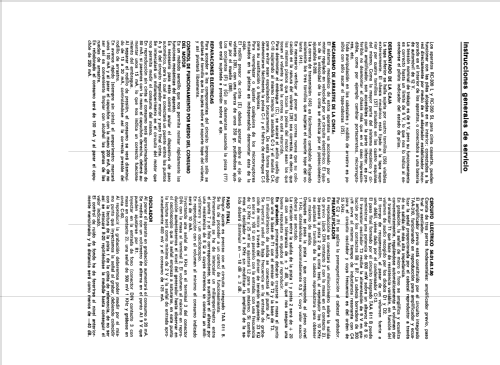

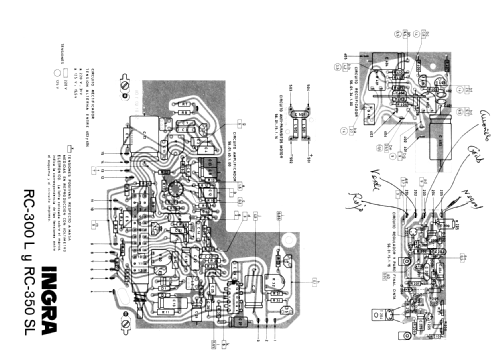

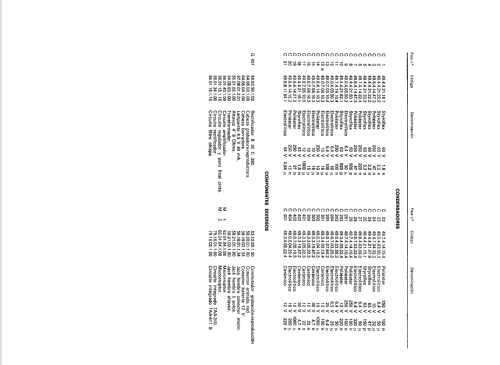

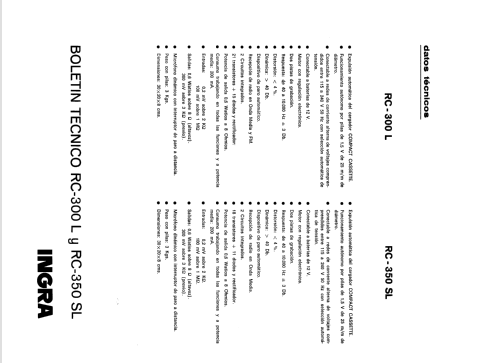

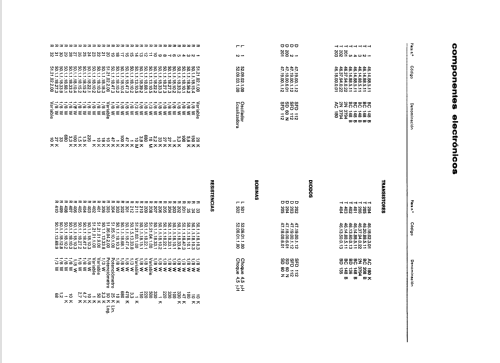

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
