Stereo Automatic 8020-STX
Ingra; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Ingra; Barcelona
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 197488

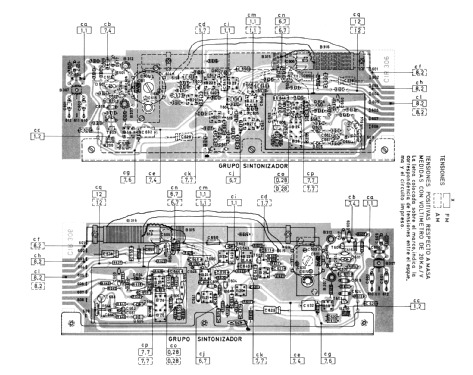

Foto del manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 73
- Semiconductors
- BC135 BC148 BC149 BC158 BC208 BD135 BD137 BD138 MC140 MC150 SF196 SF294 SF295 2N3055 2N3794 MC1310 BAV54 BB100 BY206 H105 SFD112 1N542 1N5402 Diode_Zener
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo Automatic 8020-STX - Ingra; Barcelona
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 593 x 223 x 330 mm / 23.3 x 8.8 x 13 inch
- Notes
- Aparato estereo (2 x 15 W) compacto.
Radio AM-FM(estéreo).
Tocadiscos de tres velocidades (33, 45 y 78 rpm).
Magnetófono de casettes (Cr. o normal).
Dos bafles independientes de 40 x 27 x 21 cm.
Listado un único semiconductor por tipo. (73 transistores , 1 integrado y 47 diodos)
