AM-FM Battery - Electric
Inno-Hit (Innohit)
- Country
- Italy
- Manufacturer / Brand
- Inno-Hit (Innohit)
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346324
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220-240 / AA: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM-FM Battery - Electric - Inno-Hit Innohit
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 175 x 110 x 45 mm / 6.9 x 4.3 x 1.8 inch
- Notes
-

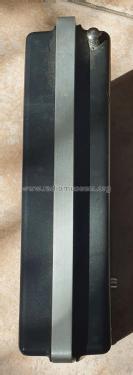

Two side wheels, one for power and volume, the other for tuning.
Jack for headphone
Telescopic non-orientable antenna.
Metal handle with vertical scrolling.
Speaker made in Taiwan, 8 ohm, 0,25 watt.
- Net weight (2.2 lb = 1 kg)
- 0.470 kg / 1 lb 0.6 oz (1.035 lb)
- Author
- Model page created by Felice Nicolini. See "Data change" for further contributors.
