RM-066

Inno-Hit (Innohit)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 350530

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220/ C: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RM-066 - Inno-Hit Innohit
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 225 x 135 x 65 mm / 8.9 x 5.3 x 2.6 inch
  • Notes

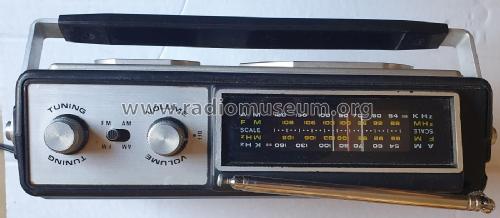

  • The top of the radio, with dial, knobs for tuning and on/off-volume and band switch, is symmetrical: it can be read the same way from the front as from the back (unfortunately the radio scale is only 7 cm).

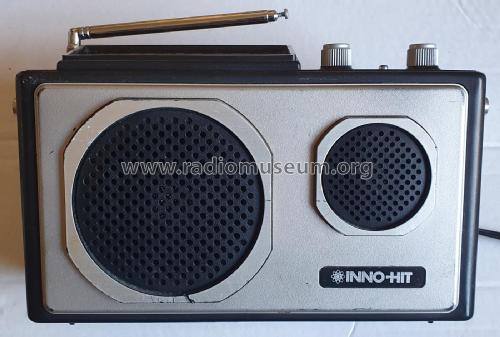

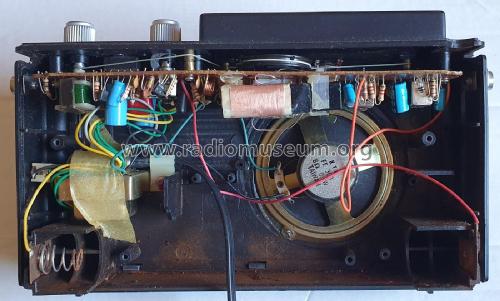

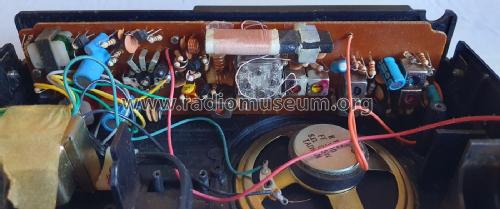

    Despite appearances, the radio has only one speaker. Ferrite 5.5 cm long. Speaker 8 ohm, 0,5 W, made in Taiwan.
    At least externally, radio identical to Prodex NF 126C: https://www.radiomuseum.org/r/unknown_prodex_nf_126c.html.

    Transistor CS9015

  • Net weight (2.2 lb = 1 kg)
  • 0.8 kg / 1 lb 12.2 oz (1.762 lb)
  • Author
  • Model page created by Felice Nicolini. See "Data change" for further contributors.
