• Country
• Italy

• Manufacturer / Brand
• Inno-Hit (Innohit)

• Year
• 1971 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 274828

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Transceiver; ZF/IF 455 kHz; 1 AF stage(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Batteries / addl. power jack / AA: 8 x 1.5 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

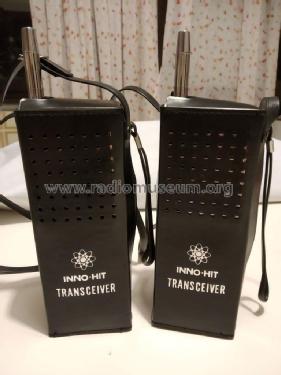

• Model: Transceiver GT-413 - Inno-Hit Innohit

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.75 x 7.75 x 2.125 inch / 70 x 197 x 54 mm

• Notes

• Transceiver citizen band 27 MHz, 2 channels.

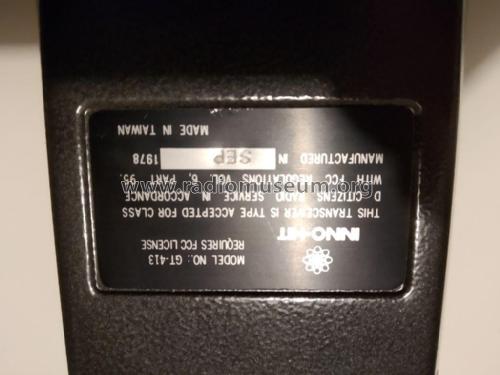

  Made in Taiwan

• Net weight (2.2 lb = 1 kg)
• 1.75 lb (1 lb 12 oz) / 0.795 kg

• Author
• Model page created by Claudio Corte. See "Data change" for further contributors.
