• Country
• Italy

• Manufacturer / Brand
• Inno-Hit (Innohit)

• Year
• 1981 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 201371

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 140ANB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

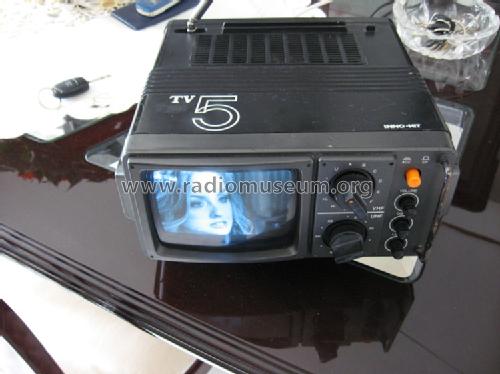

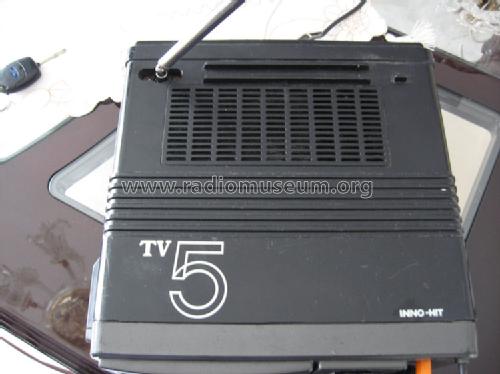

• Model: TV-5 - Inno-Hit Innohit

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 245 x 120 x 260 mm / 9.6 x 4.7 x 10.2 inch

• Notes

• Gamme d'onda VHF e UHF.

  CRT b/n da 5 pollici tipo 140ANB4 (Samsung)

• Net weight (2.2 lb = 1 kg)
• 3.370 kg / 7 lb 6.8 oz (7.423 lb)

• Author
• Model page created by Giovanni Scalavino. See "Data change" for further contributors.
