- Country
- Spain
- Manufacturer / Brand
- Inrat, Barcelona
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226172
-
- alternative name: Ind. Nal. Radios y Accesorios Trullols || Trullols, Juan
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13.5 cm = 5.3 inch
- Material
- Wooden case
- from Radiomuseum.org

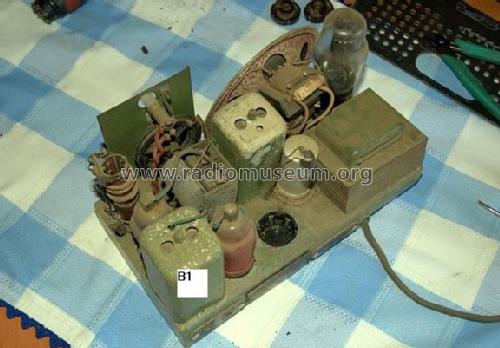

- Model: BM - Inrat, Barcelona
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 270 x 220 mm / 15.7 x 10.6 x 8.7 inch
- Author
- Model page created by Alfredo Catalina. See "Data change" for further contributors.
