• Country
• Spain

• Manufacturer / Brand
• IREG; Instrumentos Radio Electrónicos Gixá; Barcelona

• Year
• 1950 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 176410

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Comprobador de valvulas GX 49 - IREG; Instrumentos Radio

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 400 x 360 x 120 mm / 15.7 x 14.2 x 4.7 inch

• Notes

• IREG; Instrumentos Radio Electrónicos Gixá, Comprobador de válvulas GX-40

  Comprobador de válvulas europeas y americanas con filamentos de 1,4V a 117V.
  Prueba de continuidad de filamentos, cortocircuitos y fugas, por elementos separados.

  Presentación en maleta, forma de pupitre con tapa desmontable.

  PVP en catálogo Bertrán de 1950: 2.308,30 Pesetas (1€ =166,386 Pts)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Radioelectricidad 1950

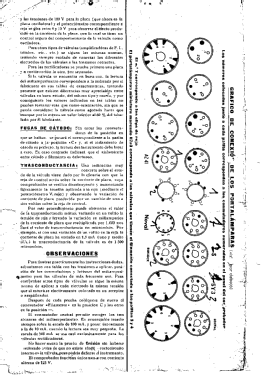

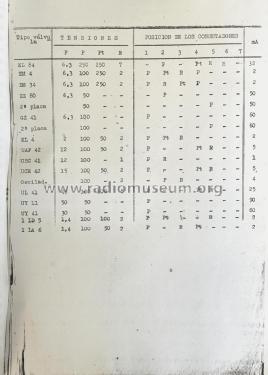

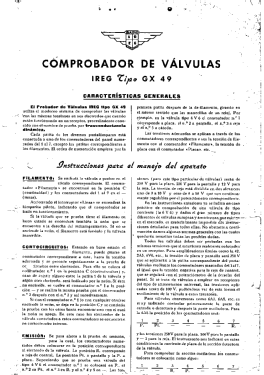

• Literature/Schematics (1)
• Catálogo 1950 Radio Bertrán pág. 14

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
