Transceptor portatil Minor S-3

INTAL; Industria de telecomunicacion almeriense ; Almeria

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 300294

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 10700/455 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Storage and/or dry batteries / 13,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Power out
  • 1.5 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Transceptor portatil Minor S-3 - INTAL; Industria de
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 50 x 260 x 40 mm / 2 x 10.2 x 1.6 inch
  • Notes

  • 3 canales FM entre 60-88 ó 144-175 MHz.
    Potencia de salida: 1 W RF.
    Alimentation: según demanda por pilas secas o baterías recargables Ni-Cd.



  • Net weight (2.2 lb = 1 kg)
  • 0.9 kg / 1 lb 15.7 oz (1.982 lb)
  • Mentioned in

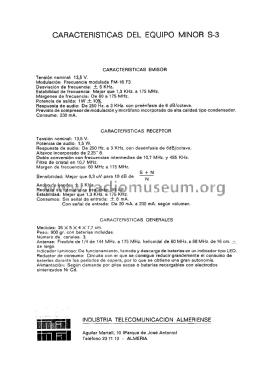

  • -- Original prospect or advert
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
