AM CB Transceiver H-510 Plus
INTEK S.p.A.; Milano
- Country
- Italy
- Manufacturer / Brand
- INTEK S.p.A.; Milano
- Year
- 2005 ??
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 300240
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop; ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 cm = 1.2 inch
- Power out
- 4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

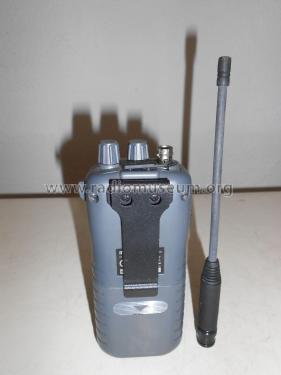

- Model: AM CB Transceiver H-510 Plus - INTEK S.p.A.; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 68 x 146 x 38 mm / 2.7 x 5.7 x 1.5 inch
- Notes
-
27 MHz Banda cittadina (CB) - controllo volume/squelch - 40 canali AM - display digitale frontale - led Tx - microfono frontale incorporato - tasti up/down channel - staffa di trasporto - tasti light/Hi-Lo power Tx/lock (blocco tastiera) - tasto PTT - sensibilità: 0.7μV per 20dB SINAD - impedenza antenna 50 Ω - consumo ricezione 70 mA - consumo Tx 1500 mA (senza modulazione) -
- Net weight (2.2 lb = 1 kg)
- 0.185 kg / 0 lb 6.5 oz (0.407 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
