• Country
• Germany

• Manufacturer / Brand
• Intel, Interelectric; Bad Aibling und München

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114984

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 7 cm = 2.8 inch

• Material
• Various materials

• from Radiomuseum.org

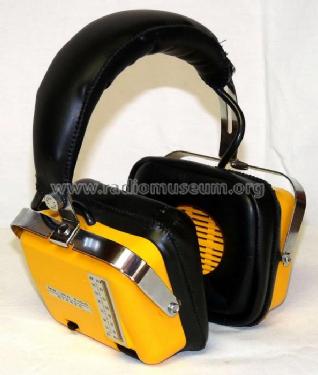

• Model: Kopfhörer-Radio - Intel, Interelectric; Bad

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 110 x 90 x 40 mm / 4.3 x 3.5 x 1.6 inch

• Notes
• MW-UKW-Stereo-Kopfhörerradio, UKW 88-108 MHz, MW 540-1600 kHz,
  2 Lautsprecher mit je 0,2 Watt/8 Ohm. Integrierter Schaltkreis: AN 211B,
  ext. Ausgang für Hifi-Komponenten über Klinkenbuchse 3,5mm, FTZ-Nr. 113/235.
  Siehe auch Modell Daiton Radio Headphones SKH-800.

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
