• Country
• Spain

• Manufacturer / Brand
• Intepra.Instituto Tecnico Practico de Radio; Barcelona

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315677

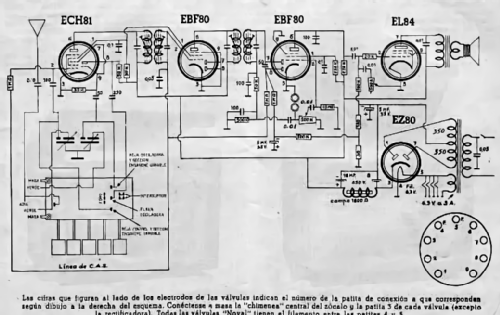

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 EBF80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 114 - Intepra.Instituto Tecnico

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 410 x 280 x 230 mm / 16.1 x 11 x 9.1 inch

• Notes

• Intepra 114

  Lleva altavoz de 6 pulgadas colocado en caja de resonancia, con salidas de sonido laterales

• Author
• Model page created by Josh Toreno. See "Data change" for further contributors.
