• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110591

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

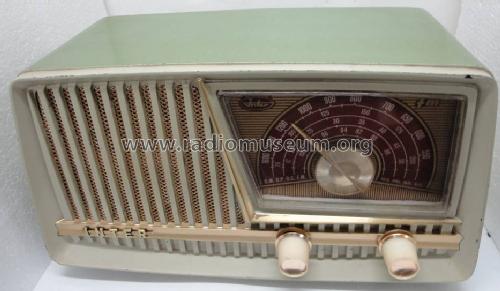

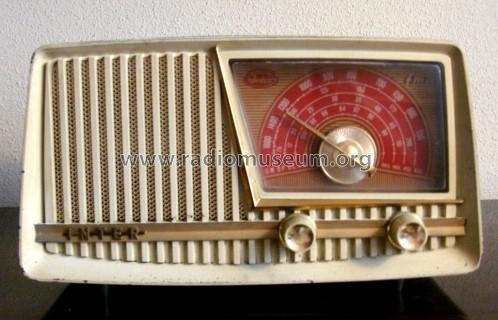

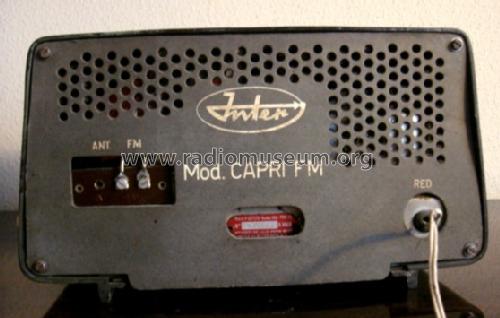

• Model: Capri AM-FM P-227/0 - Inter Electrónica, S.A., Inter

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Price in first year of sale
• 2,687.80 ESP

• Literature/Schematics (1)

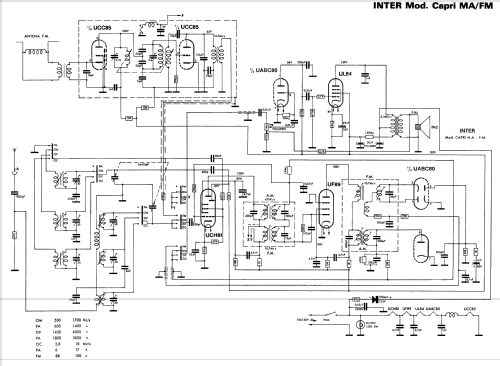

• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
