Ceylan B M-231-0
Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94424
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- ZF/IF 470 kHz; 1 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 117-127 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ceylan B M-231-0 - Inter Electrónica, S.A., Inter
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 390 x 225 x 185 mm / 15.4 x 8.9 x 7.3 inch
- Notes
- AM, OC y Banda Pesquera 1425-2100 kHz. . Rectificador de selenio.130V/75ma. Selenium rectifier
- Price in first year of sale
- 2,741.20 ESP

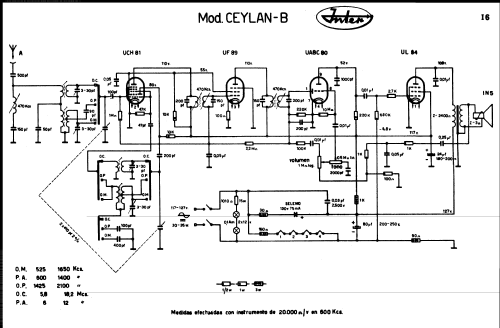

- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
