• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191309

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Power out
• 0.45 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

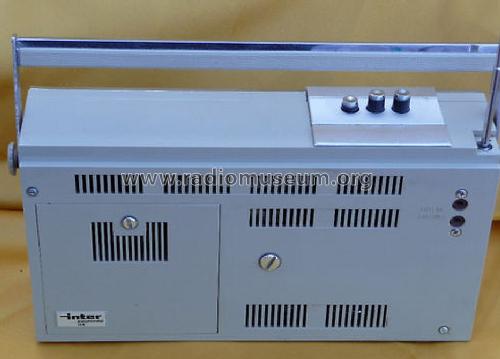

• Model: Euromodul 114 TRP-295 - Inter Electrónica, S.A., Inter

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 145 x 70 mm / 10.6 x 5.7 x 2.8 inch

• Notes

• Inter Electrónica, S.A., Euromodul 114 (114/FM)

  El frontal indica "Transistor 10". Posiblemente no está contando el PTO (TR-305).

  • OM 530-1.625 kHz; OC 5.800-15.000 kHz: FM 87,5-108,5 MHz
  • Impedancia altavoz: 16 Ω
  • Tono: Palabra-Música

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
