• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151396

• Number of Transistors
• 3

• Semiconductors
• SF115 SF115 SF115 SN76001

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

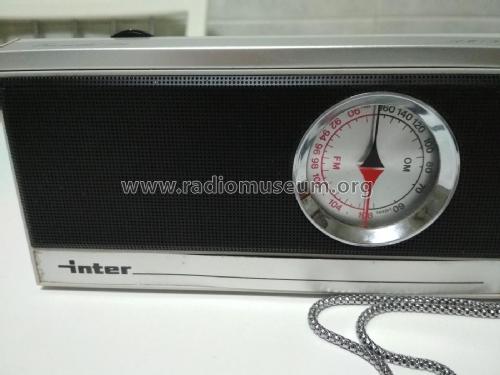

• Model: Euromodul 124 TRP-364 - Inter Electrónica, S.A., Inter

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 170 x 50 x 90 mm / 6.7 x 2 x 3.5 inch

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.

• Other Models

• Here you find 337 models, 183 with images and 191 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
