• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1975 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155917

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BF195 BF195 BF195 BF195 AC187 AC188 TBA460 BB105 SFD107 1N542

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

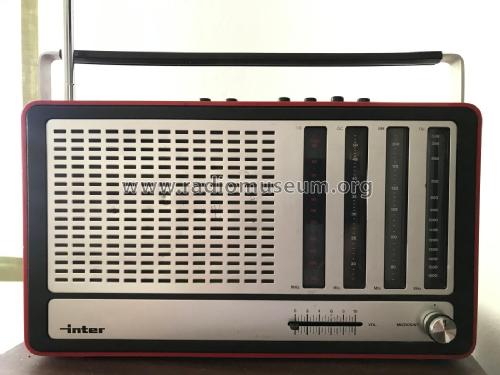

• Model: Euromodul 150 TRP-405 - Inter Electrónica, S.A., Inter

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Se diferencia del Inter Euromodul 150-L en llevar Banda Pesquera en lugar de la OL.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
