• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 323231

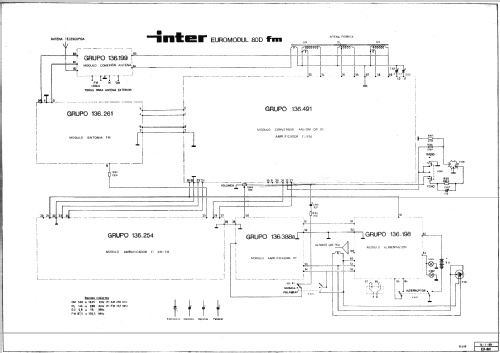

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Euromodul 80-D-FM TRM-275-D - Inter Electrónica, S.A., Inter

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 440 x 200 x 135 mm / 17.3 x 7.9 x 5.3 inch

• Notes

• Inter Electrónica, S.A., Euromodul 80-D-FM TRM-275-D

  Bandas:

  • AM: 530 - 1625 kHz
  • OL: 145 - 290 kHz
  • OC: 6,8 - 15 MHz
  • FM: 87,5 - 108,5 MHz

• Author
• Model page created by Josh Toreno. See "Data change" for further contributors.
