• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62493

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH41 EAF41 EAF41 EL41 AZ41

• Main principle
• Superheterodyne (common); 1 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

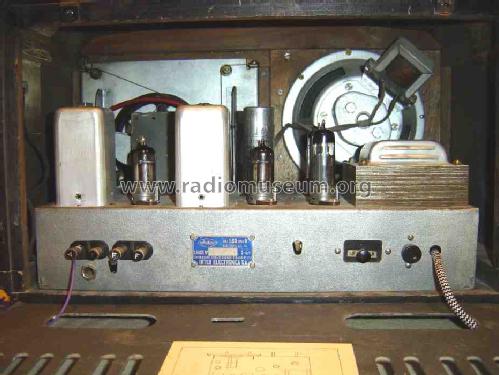

• Model: Horizonte Cobalto 560-B - Inter Electrónica, S.A., Inter

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 470 x 290 x 280 mm / 18.5 x 11.4 x 11 inch

• Price in first year of sale
• 2,683.85 ESP

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Literature/Schematics (1)
• Anuncio La Vanguardia Española 15/12/1949
